M140048

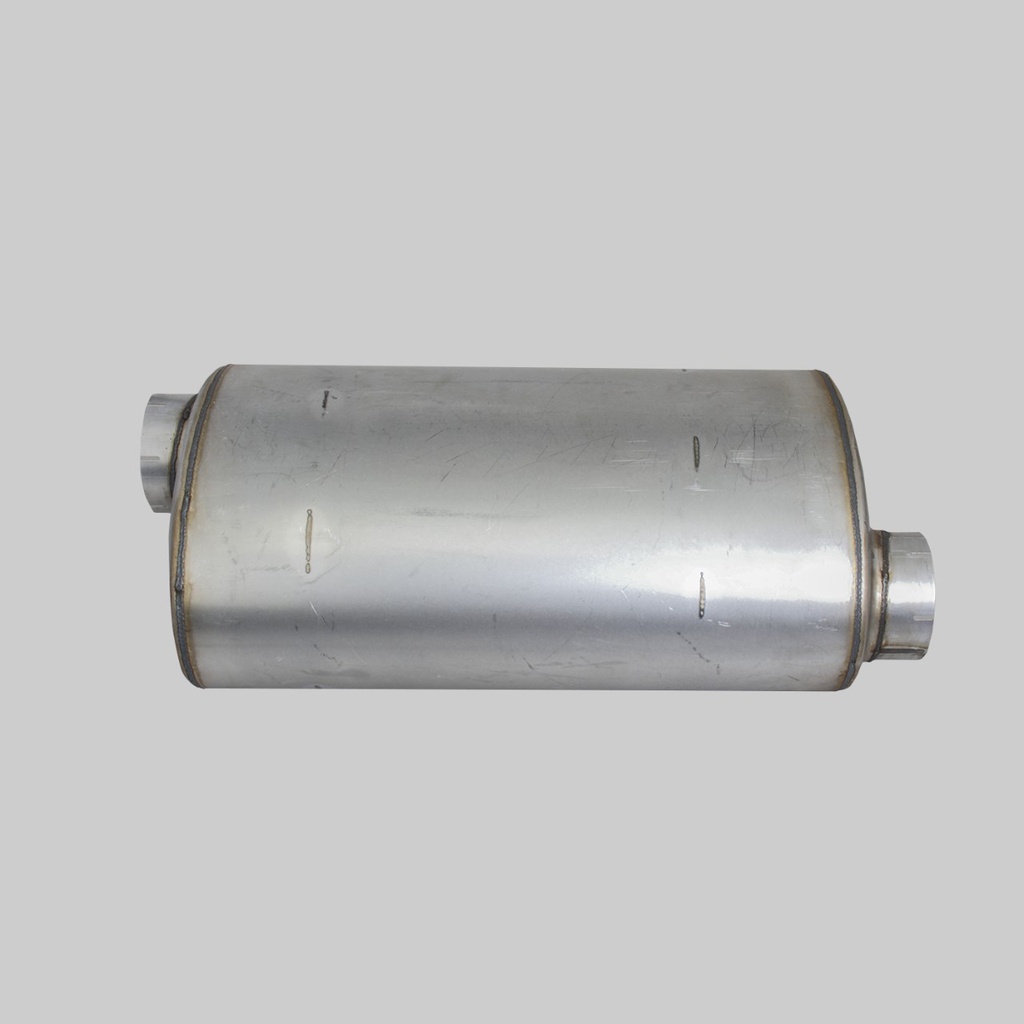

SILENCIEUX D'ECHAPPEMENT, OVAL STYLE 2
Mark :
DONALDSON
Stock :
0
Size :
0.0m³
Weight :
0.0kg
Technical Data:
Inlet Diameter: 153.39 MM
Outlet Diameter: 153.39 MM
Body Diameter Minimum: 307.85 MM
Body Diameter Maximum: 460.25 MM
Body Length: 762 MM
Overall Length: 965.2 MM
Rated Flow LR: 61.5 CMM
Rated Flow MR: 87 CMM
Rated Flow HR: 106.5 CMM
Back Pressure Low-Range: 25 MM HG
Back Pressure Mid-Range: 51 MM HG
Back Pressure High-Range: 76 MM HG
Attenuation LR: 11 DBA
Attenuation HR: 16 DBA
Inlet Clock Position: 3:00
Outlet Clock Position: 9:00
Style: Style 2
Accessories:
| 1 | EUCLID - 12584634 (M140048) |
| 1 | HEAVY DUTY MFG - 31234 (M140048) |
| 1 | MI-JACK - 43171003 (M140048) |
| 1 | INTERNATIONAL - DCM140048 (M140048) |
| 1 | P & H - 27Q690 (M140048) |
| 1 | P & H - 327Q690 (M140048) |
| 1 | SANDVIK - 020566001 (M140048) |
| 1 | SANDVIK - 20566001 (M140048) |
| 1 | CAMECO - 0551327795 (M140048) |
| 1 | CAMECO - 551327795 (M140048) |
| 1 | CRANE CARRIER - 2100171 (M140048) |
| 1 | DETROIT DIESEL - DPM140048 (M140048) |
| 1 | FOREMOST INDUSTRIES - 362455 (M140048) |
