M120747

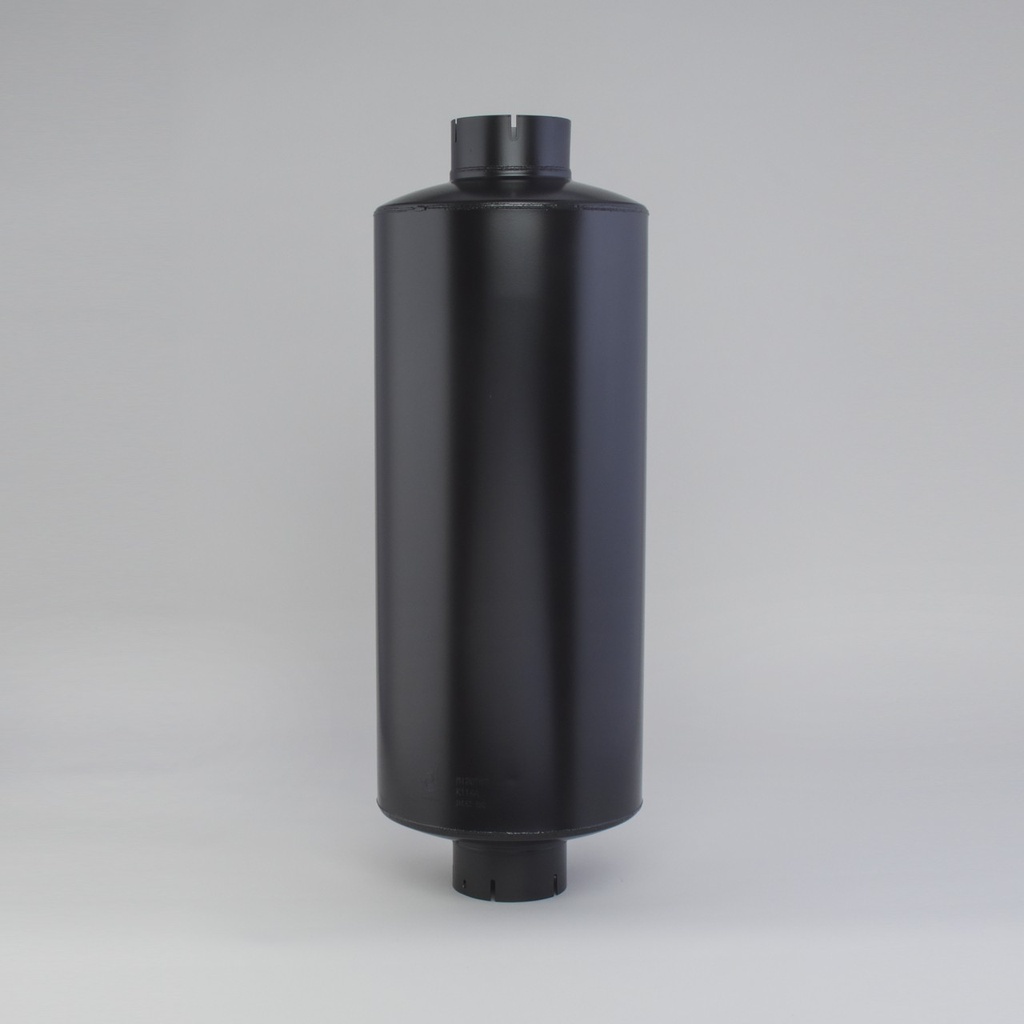

SILENCIEUX D'ECHAPPEMENT, ROUND STYLE 1
Mark :
DONALDSON
Stock :
0
Size :
0.0m³
Weight :
0.0kg
Technical Data:
Inlet Diameter: 127.64 MM
Outlet Diameter: 127.64 MM
Body Diameter Maximum: 300.7 MM
Body Length: 654 MM
Overall Length: 863.6 MM
Rated Flow LR: 49.9 CMM
Rated Flow MR: 69.3 CMM
Rated Flow HR: 69.3 CMM
Back Pressure Low-Range: 25 MM HG
Back Pressure Mid-Range: 51 MM HG
Back Pressure High-Range: 76 MM HG
Attenuation LR: 12 DBA
Attenuation HR: 18 DBA
Style: Style 1
Accessories:
| 1 | NELSON - 201575N (M120747) |
