M110674

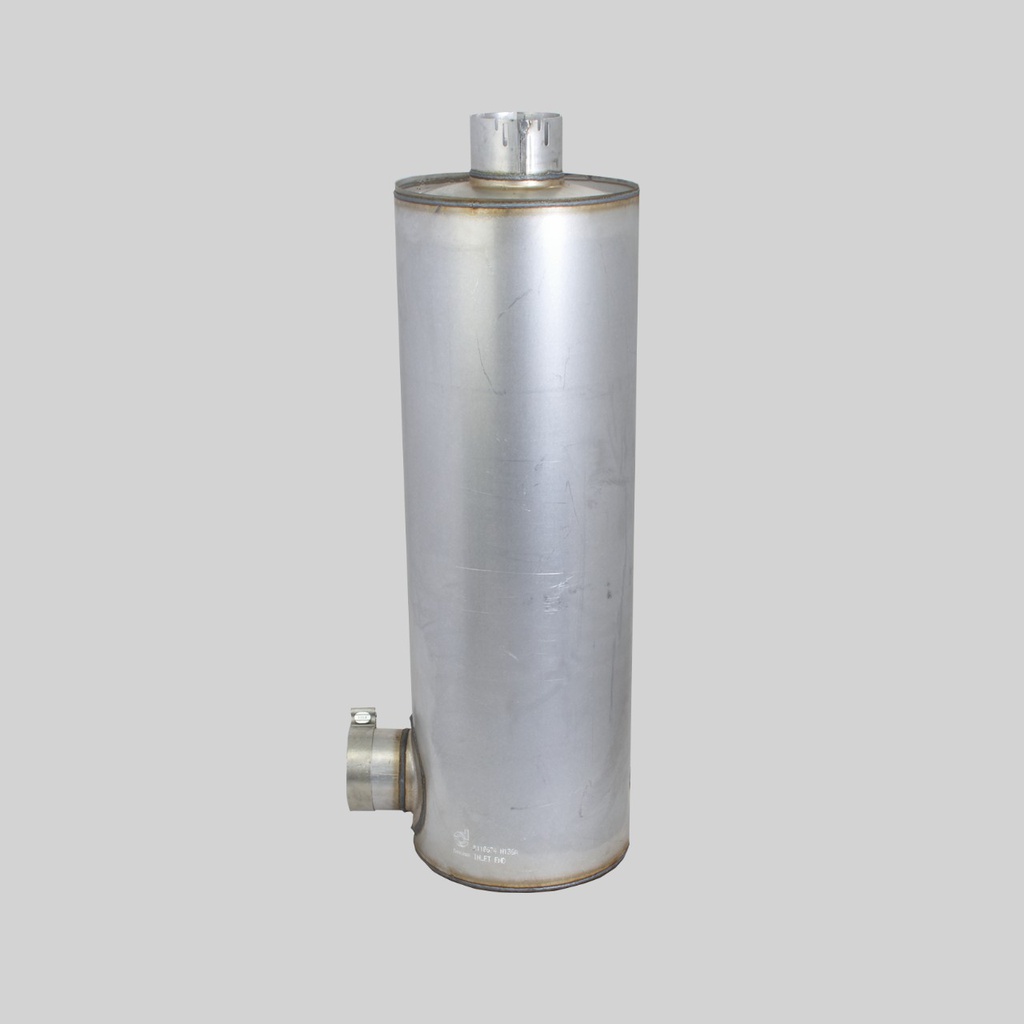

SILENCIEUX D'ECHAPPEMENT, ROUND STYLE 3
Mark :
DONALDSON
Stock :
0
Size :
0.0m³
Weight :
0.0kg
Technical Data:
Inlet Diameter: 102.11 MM
Outlet Diameter: 102.11 MM
Body Diameter Maximum: 281.4 MM
Body Length: 838.2 MM
Overall Length: 914.4 MM
Rated Flow LR: 27.4 CMM
Rated Flow MR: 38.7 CMM
Rated Flow HR: 47.5 CMM
Back Pressure Low-Range: 25 MM HG
Back Pressure Mid-Range: 51 MM HG
Back Pressure High-Range: 76 MM HG
Attenuation LR: 15 DBA
Attenuation HR: 20 DBA
Inlet Clock Position: 6:00
Style: Style 3
Accessories:
| 1 | FREIGHTLINER - 61240011 (M110674) |
| 1 | FREIGHTLINER - DNM110674 (M110674) |
| 1 | FREIGHTLINER - TBB61240011 (M110674) |
| 1 | INTERNATIONAL - 61240011 (M110674) |
| 1 | THOMAS BUILT BUSES - 61240011 (M110674) |
