M100043

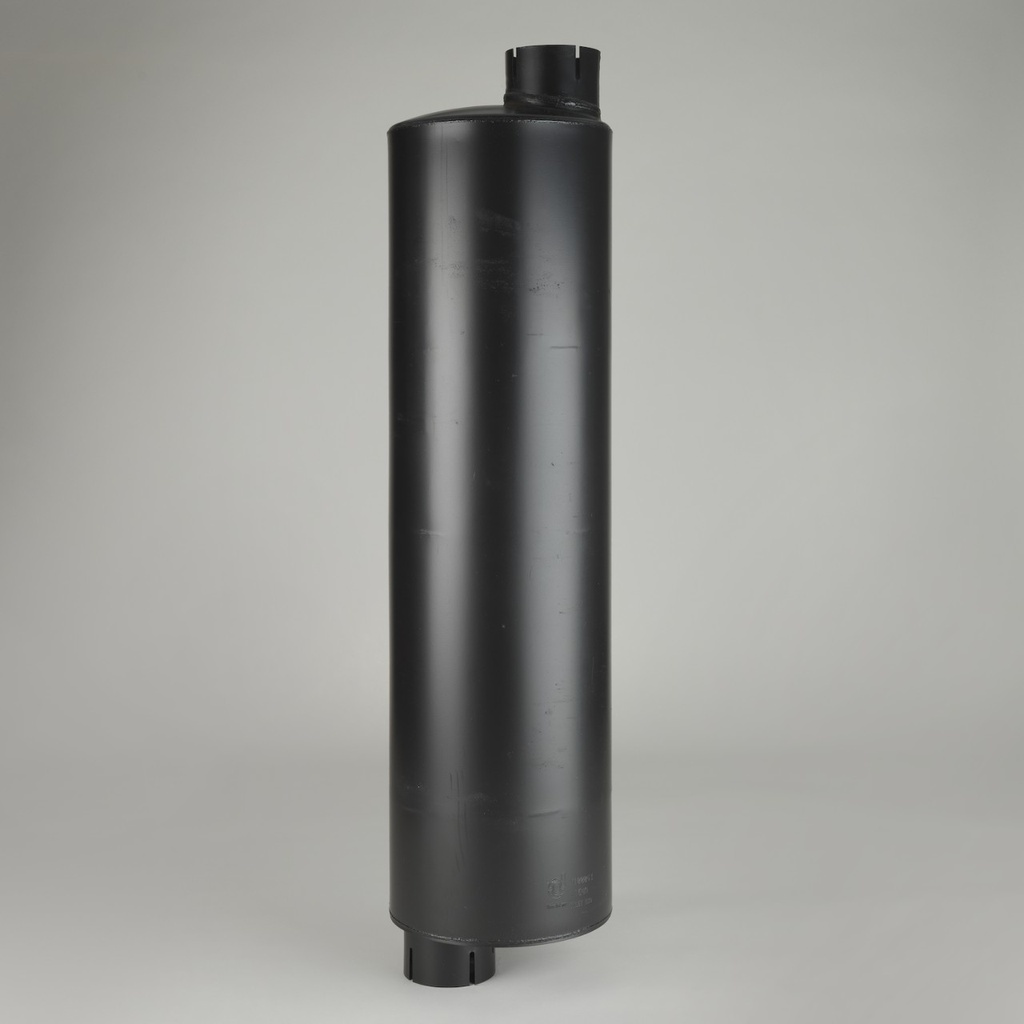

SILENCIEUX D'ECHAPPEMENT
Mark :
DONALDSON
Stock :
0
Size :
0.0m³
Weight :
0.0kg
Technical Data:
Inlet Diameter: 102.11 MM
Outlet Diameter: 102.11 MM
Body Diameter Maximum: 256.44 MM
Body Length: 898.4 MM
Overall Length: 1060.45 MM
Rated Flow LR: 27.8 CMM
Rated Flow MR: 39.4 CMM
Rated Flow HR: 48.2 CMM
Back Pressure Low-Range: 25 MM HG
Back Pressure Mid-Range: 51 MM HG
Back Pressure High-Range: 76 MM HG
Attenuation LR: 15 DBA
Attenuation HR: 20 DBA
Inlet Clock Position: 6:00
Outlet Clock Position: 12:00
Style: Style 2
Accessories:
| 1 | FIAT - 153612171 (M100043) |
| 1 | FIAT - 3612171 (M100043) |
| 1 | FIAT - 73061486 (M100043) |
| 1 | FMC - 31H0104 (M100043) |
| 1 | GILLIG - 5300248006 (M100043) |
| 1 | GRADALL - 86883067 (M100043) |
| 1 | HAVAM - HD4170 (M100043) |
| 1 | HEAVY DUTY MFG - 31043 (M100043) |
| 1 | HYSTER - 393997 (M100043) |
| 1 | JLG - 86883067 (M100043) |
| 1 | KOEHRING - 420V4383 (M100043) |
| 1 | KOMATSU - 1619398100 (M100043) |
| 1 | LBX COMPANY LLC - 31H0104 (M100043) |
| 1 | LINK BELT - 31H0104 (M100043) |
| 1 | MACK - 25069983 (M100043) |
| 1 | MACK - 2ME377 (M100043) |
| 1 | ATLAS COPCO - 16193981 (M100043) |
| 1 | ATLAS COPCO - 1619398100 (M100043) |
| 1 | ATLAS COPCO - 16193984 (M100043) |
| 1 | MI-JACK - 33170099 (M100043) |
| 1 | MANITOWOC - 5369600 (M100043) |
| 1 | MOXY - 051368 (M100043) |
| 1 | AUXIFLOW - A3345404 (M100043) |
| 1 | BADGER - 76049046 (M100043) |
| 1 | BARKO HYDRAULICS - 53501019 (M100043) |
| 1 | INTERNATIONAL - DCM100043 (M100043) |
| 1 | NEW HOLLAND - 153612171 (M100043) |
| 1 | NEW HOLLAND - 73061486 (M100043) |
| 1 | NELSON - 86118M (M100043) |
| 1 | NELSON - 86662M (M100043) |
| 1 | OSHKOSH - 120167A (M100043) |
| 1 | OTTAWA TRUCK - N0901008H (M100043) |
| 1 | OTTAWA TRUCK - N090100BH (M100043) |
| 1 | RIKER - 10918 (M100043) |
| 1 | SEDDON ATKINSON - 65297S1 (M100043) |
| 1 | TAMROCK - 501170 (M100043) |
| 1 | TEREX - 420V4383 (M100043) |
| 1 | TRUCKEX - 3911 (M100043) |
| 1 | VOLVO - 230010066 (M100043) |
| 1 | WALGAHN-MOTORENTECHN - 00810322 (M100043) |
| 1 | WALGAHN-MOTORENTECHN - 810322 (M100043) |
| 1 | DOOSAN - 51368 (M100043) |
| 1 | CASE/CASE IH - 136929 (M100043) |
| 1 | AGCO - 836339052 (M100043) |
| 1 | CASE/CASE IH - 0000136929 (M100043) |
| 1 | CASE/CASE IH - 153612171 (M100043) |
| 1 | CASE/CASE IH - 3612171 (M100043) |
| 1 | CASE/CASE IH - 73061486 (M100043) |
| 1 | COMPAIR - 1075A84440 (M100043) |
| 1 | CHAMPION ROAD - 11877 (M100043) |
| 1 | CUB CADET - 549471C1 (M100043) |
| 1 | DART - MTM100043 (M100043) |
| 1 | PARTS DISTRIBUTING - 100043 (M100043) |
