M090520

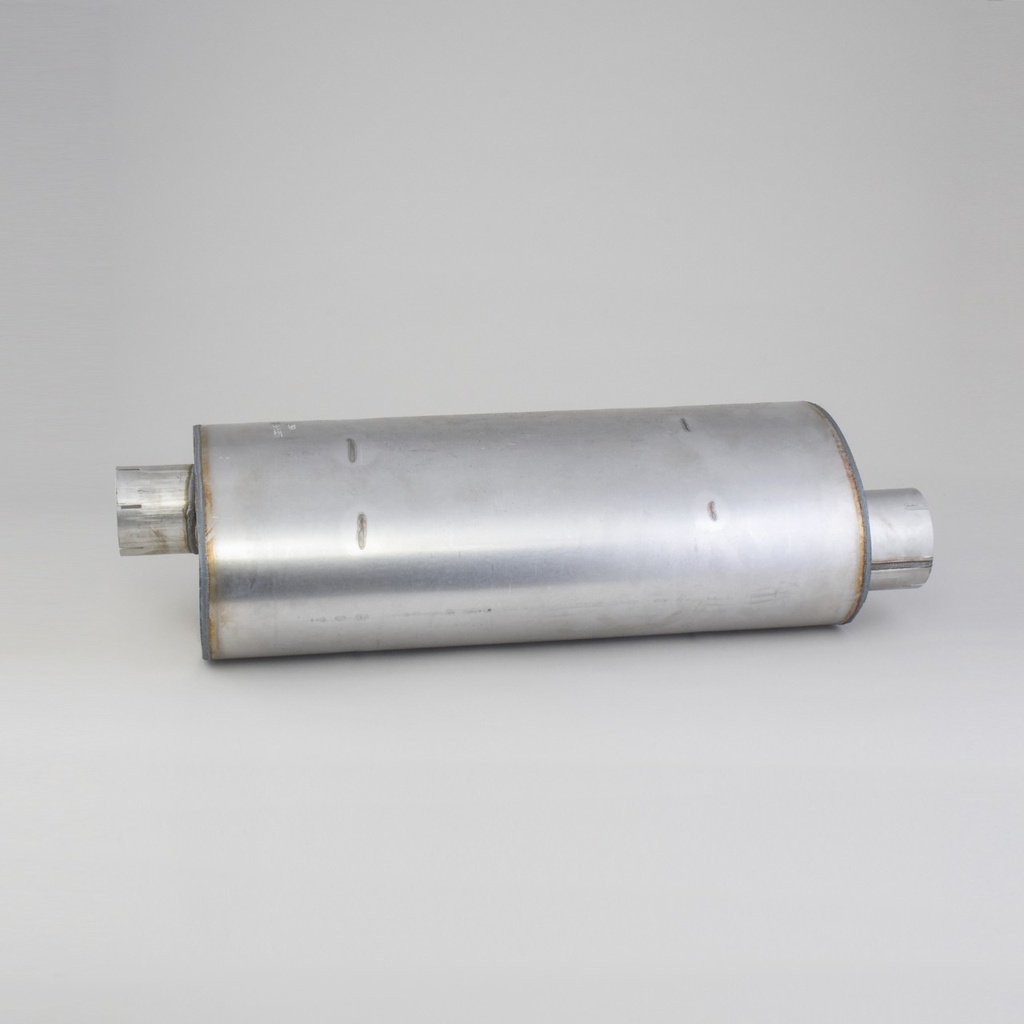

SILENCIEUX D'ECHAPPEMENT, OVAL STYLE 2
Mark :
DONALDSON
Stock :
0
Size :
0.0m³
Weight :
0.0kg
Technical Data:
Inlet Diameter: 89.28 MM
Outlet Diameter: 102.11 MM
Body Diameter Minimum: 209.6 MM
Body Diameter Maximum: 292 MM
Body Length: 660.4 MM
Overall Length: 819.2 MM
Rated Flow LR: 28.1 CMM
Rated Flow MR: 39.7 CMM
Rated Flow HR: 48.6 CMM
Back Pressure Low-Range: 25 MM HG
Back Pressure Mid-Range: 51 MM HG
Back Pressure High-Range: 76 MM HG
Attenuation LR: 13 DBA
Attenuation HR: 18 DBA
Inlet Clock Position: 3:00
Outlet Clock Position: 9:00
Style: Style 2
Accessories:
| 1 | FORD - 9575M090520 (M090520) |
| 1 | GLOBAL ASPHALT PRODUCTS - 505491 (M090520) |
| 1 | AP EXHAUST PRODUCTS INC - 3611 (M090520) |
| 1 | A P PARTS - 3611 (M090520) |
| 1 | A P PARTS - 3611Q (M090520) |
| 1 | A P PARTS - 3716 (M090520) |
| 1 | MERITOR - 102974 (M090520) |
| 1 | MAREMONT - ZF947 (M090520) |
| 1 | INTERNATIONAL - 1647998C1 (M090520) |
| 1 | INTERNATIONAL - 482167C1 (M090520) |
| 1 | INTERNATIONAL - DCM090520 (M090520) |
| 1 | NELSON - 86512M (M090520) |
| 1 | NELSON - 86669M (M090520) |
| 1 | STEMCO - 1909532 (M090520) |
| 1 | TRANSPORTATION ACCESSORIES - TAC466 (M090520) |
| 1 | TRUCKEX - 3611 (M090520) |
| 1 | TRUCKEX - 3716 (M090520) |
| 1 | ACRAFIT - M20512 (M090520) |
| 1 | VOEGELE - 505491 (M090520) |
| 1 | WALKER MANUFACTURING - 21832 (M090520) |
| 1 | DYNAFLEX - 89354051 (M090520) |
| 1 | DYNAFLEX - 89354055 (M090520) |
| 1 | GRAND ROCK - M512 (M090520) |
| 1 | PARTS DISTRIBUTING - 11227 (M090520) |
| 1 | PARTS DISTRIBUTING - M23548X11 (M090520) |
