M085207

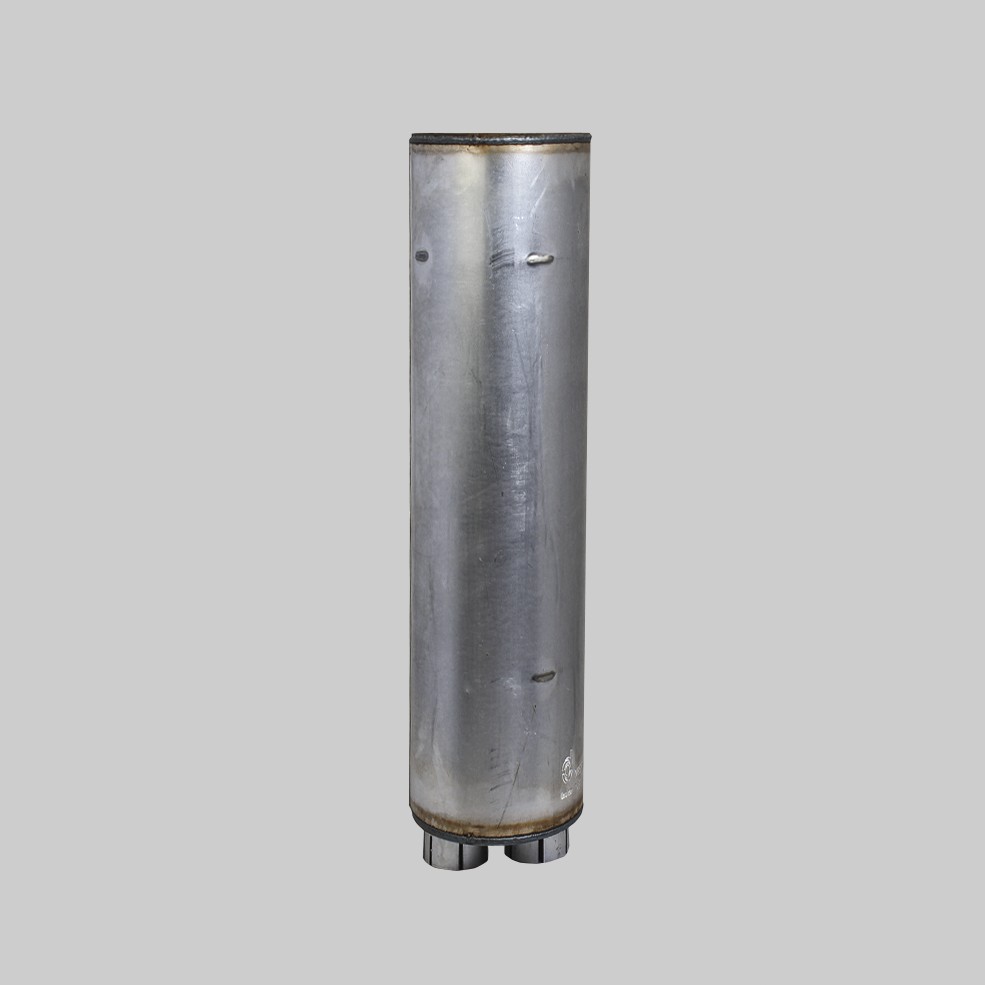

SILENCIEUX D'ECHAPPEMENT, ROUND STYLE 5
Mark :
DONALDSON
Stock :
0
Size :
0.0m³
Weight :
0.0kg
Technical Data:
Inlet Diameter: 76.66 MM
Outlet Diameter: 76.66 MM
Body Diameter Maximum: 214.88 MM
Body Length: 558.8 MM
Overall Length: 596.9 MM
Rated Flow LR: 17.8 CMM
Rated Flow MR: 25.1 CMM
Rated Flow HR: 30.8 CMM
Back Pressure Low-Range: 25 MM HG
Back Pressure Mid-Range: 51 MM HG
Back Pressure High-Range: 76 MM HG
Attenuation LR: 15 DBA
Attenuation HR: 20 DBA
Inlet Clock Position: 6:00
Outlet Clock Position: 12:00
Style: Style 5
Accessories:
| 1 | GETMAN - 595182 (M085207) |
| 1 | HEAVY DUTY MFG - 31243 (M085207) |
| 1 | INGERSOLL RAND - 13145271 (M085207) |
| 1 | LULL - P32697 (M085207) |
| 1 | LULL - P532697 (M085207) |
| 1 | BARKO HYDRAULICS - 53505476 (M085207) |
| 1 | INTERNATIONAL - DCM085207 (M085207) |
| 1 | PETTIBONE - LL847413 (M085207) |
| 1 | PETTIBONE - LPP32697 (M085207) |
| 1 | SULLIVAN PALATEK - 050187850033 (M085207) |
| 1 | SULLIVAN PALATEK - 0501878533 (M085207) |
| 1 | SULLIVAN PALATEK - 501878533 (M085207) |
| 1 | SULLIVAN PALATEK - P501878533 (M085207) |
| 1 | STEMCO - 1901305 (M085207) |
| 1 | STEMCO - 1909218 (M085207) |
| 1 | STEMCO - 1909230 (M085207) |
| 1 | TAYLOR - 2403184 (M085207) |
| 1 | VERMEER - 145777001 (M085207) |
| 1 | WALKER MANUFACTURING - 22637 (M085207) |
| 1 | CMI - 004013140000 (M085207) |
| 1 | CMI - 004013174000 (M085207) |
| 1 | CMI - 4013140000 (M085207) |
| 1 | CMI - 4013174000 (M085207) |
| 1 | CMI - 413174 (M085207) |
| 1 | CRANE CARRIER - 2100150 (M085207) |
| 1 | DYNAFLEX - 88300218 (M085207) |
