M070050

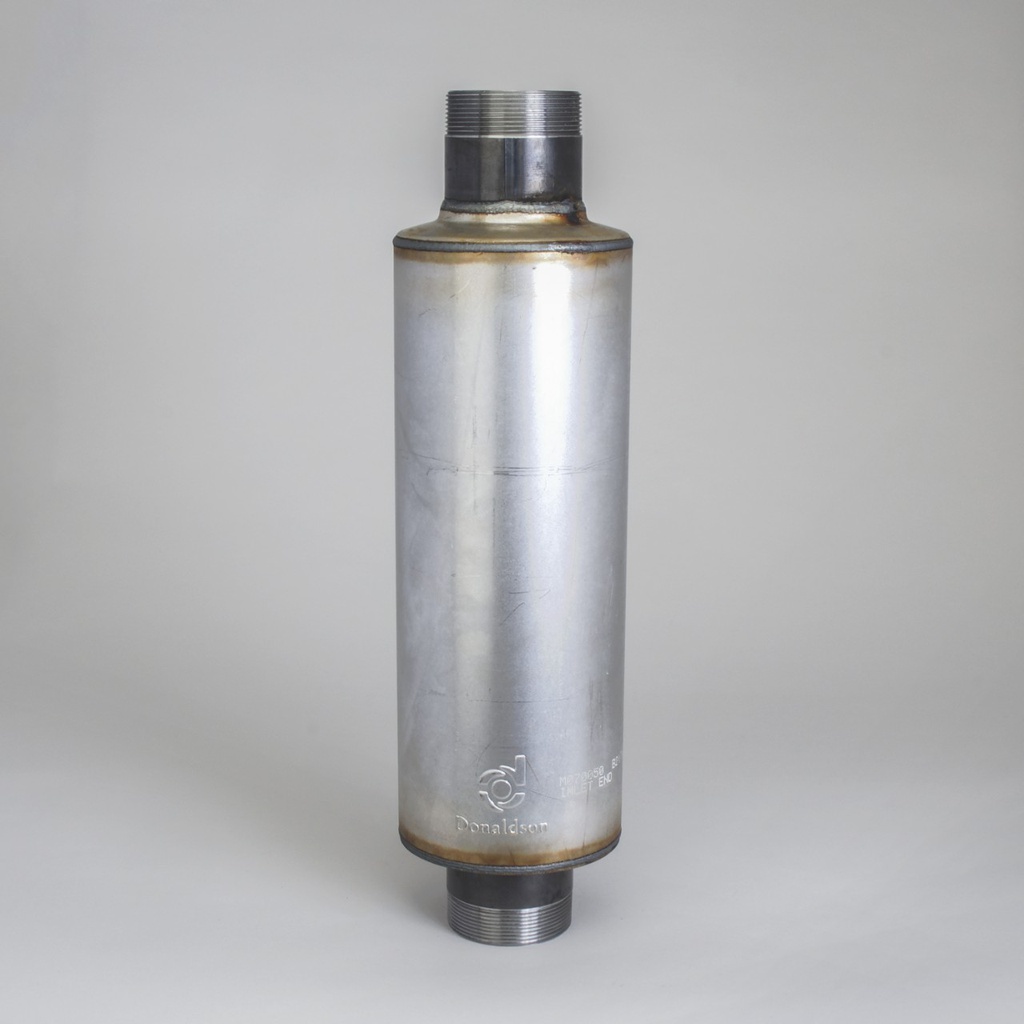

SILENCIEUX D'ECHAPPEMENT, ROUND STYLE 1
Mark :
DONALDSON
Stock :
0
Size :
0.0m³
Weight :
0.0kg
Technical Data:
Inlet Diameter: 89 MM
Outlet Diameter: 89 MM
Body Diameter Maximum: 177 MM
Body Length: 460.25 MM
Overall Length: 650.75 MM
Rated Flow LR: 23 CMM
Rated Flow MR: 32.5 CMM
Rated Flow HR: 39.8 CMM
Back Pressure Low-Range: 25 MM HG
Back Pressure Mid-Range: 51 MM HG
Back Pressure High-Range: 76 MM HG
Attenuation LR: 10 DBA
Attenuation HR: 15 DBA
Style: Style 1
Accessories:
| 1 | FMC - 18A0557 (M070050) |
| 1 | FMC - 18A557 (M070050) |
| 1 | FREIGHTLINER - DNM070050 (M070050) |
| 1 | GRADALL - 86571015 (M070050) |
| 1 | GRADALL - 86671417 (M070050) |
| 1 | GROVE - 5369330 (M070050) |
| 1 | HEAVY DUTY MFG - 31086 (M070050) |
| 1 | A P PARTS - 3685 (M070050) |
| 1 | A P PARTS - 3685Q (M070050) |
| 1 | JAEGER - 35673585 (M070050) |
| 1 | LINK BELT - 18A0557 (M070050) |
| 1 | LEROI - 78158 (M070050) |
| 1 | MANITOWOC - 536933 (M070050) |
| 1 | MANITOWOC - 5369330 (M070050) |
| 1 | INTERNATIONAL - 680033 (M070050) |
| 1 | INTERNATIONAL - DCM070050 (M070050) |
| 1 | NELSON - 86174M (M070050) |
| 1 | RIKER - X12359 (M070050) |
| 1 | RAYGO - E650024 (M070050) |
| 1 | STEMCO - 1909146 (M070050) |
| 1 | TRUCKEX - 3685 (M070050) |
| 1 | WARNER & SWASEY - 86571015 (M070050) |
| 1 | WARNER & SWASEY - 86671417 (M070050) |
| 1 | CHICAGO PNEUMATIC - IPS2453 (M070050) |
| 1 | CLARK - 851SA1930 (M070050) |
| 1 | DAVEY COMPRESSOR - A36280 (M070050) |
| 1 | DROTT - 037281 (M070050) |
| 1 | DROTT - 37281 (M070050) |
| 1 | PARTS DISTRIBUTING - MPT35 (M070050) |
