M065141

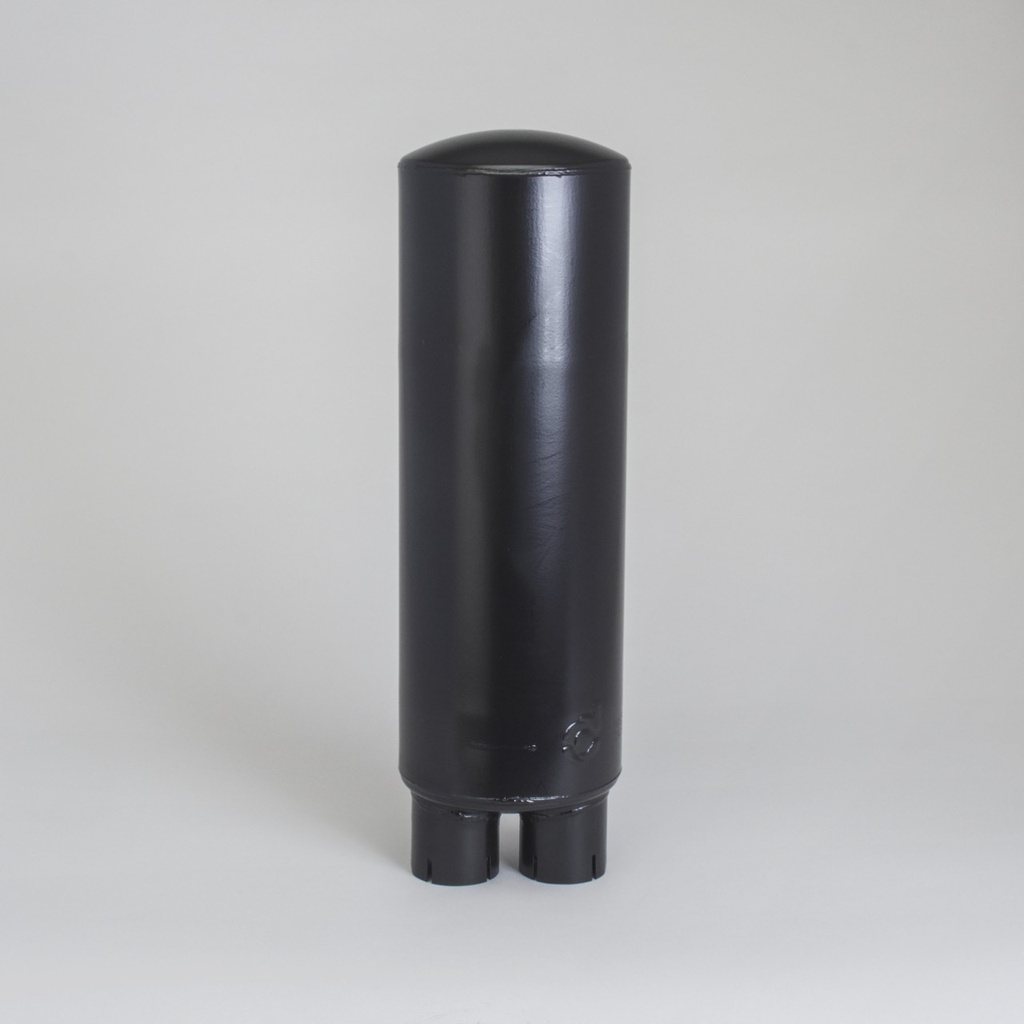

SILENCIEUX D'ECHAPPEMENT, ROUND STYLE 5
Mark :
DONALDSON
Stock :
0
Size :
0.0m³
Weight :
0.0kg
Technical Data:
Inlet Diameter: 63.88 MM
Outlet Diameter: 63.88 MM
Body Diameter Maximum: 167.89 MM
Body Length: 450.85 MM
Overall Length: 559.82 MM
Rated Flow LR: 12.5 CMM
Rated Flow MR: 17.3 CMM
Rated Flow HR: 17.3 CMM
Back Pressure Low-Range: 25 MM HG
Back Pressure Mid-Range: 51 MM HG
Back Pressure High-Range: 76 MM HG
Attenuation LR: 12 DBA
Attenuation HR: 18 DBA
Inlet Clock Position: 6:00
Outlet Clock Position: 12:00
Style: Style 5
Accessories:
| 1 | INGERSOLL RAND - 43876716 (M065141) |
| 1 | NELSON - 201558N (M065141) |
| 1 | INGERSOLL RAND - 43846716 (M065141) |
