M120176

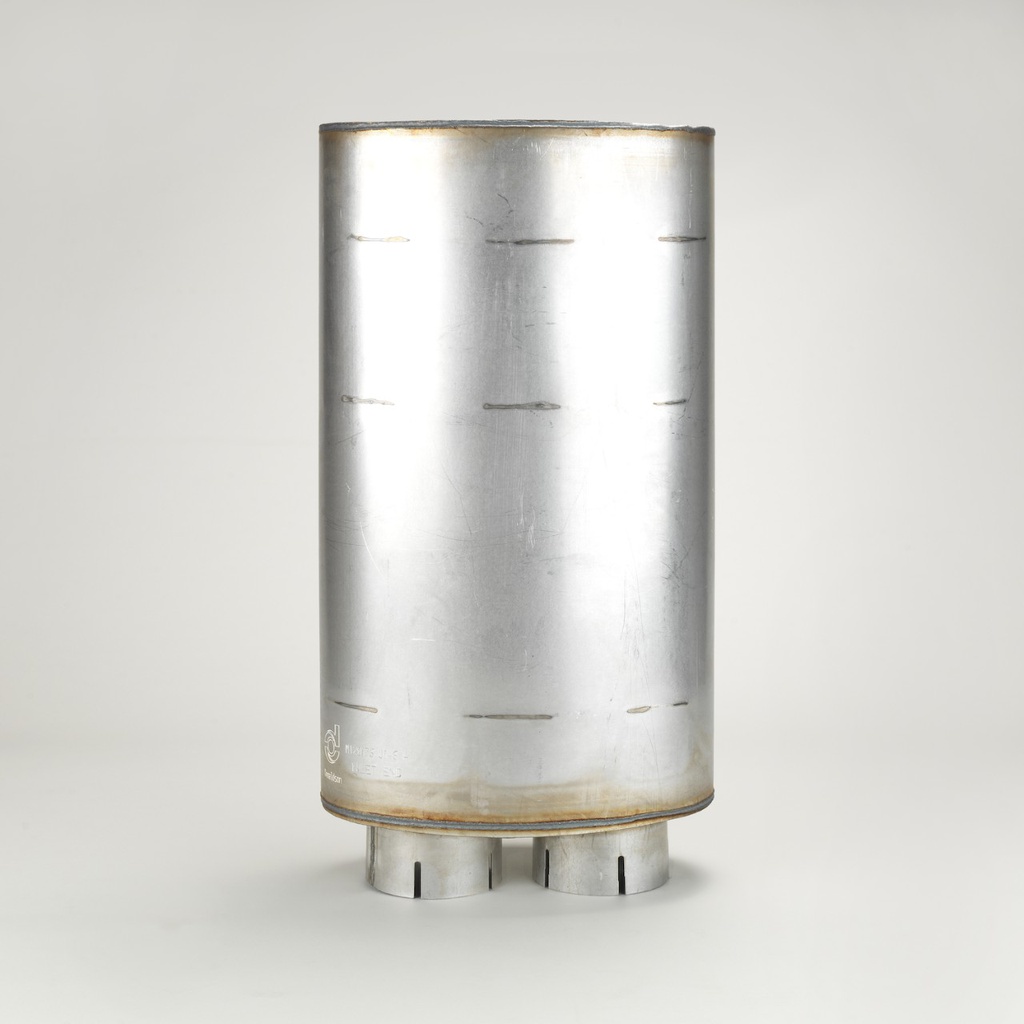

UITLAATDEMPER, OVAL STYLE 5
Mark :
DONALDSON
Stock :
0
Size :
0.0m³
Weight :
0.0kg
Technical Data:
Inlet Diameter: 127.64 MM
Outlet Diameter: 127.64 MM
Body Diameter Minimum: 254 MM
Body Diameter Maximum: 381 MM
Body Length: 654.1 MM
Overall Length: 746.25 MM
Rated Flow LR: 33.4 CMM
Rated Flow MR: 47.3 CMM
Rated Flow HR: 57.9 CMM
Back Pressure Low-Range: 25 MM HG
Back Pressure Mid-Range: 51 MM HG
Back Pressure High-Range: 76 MM HG
Attenuation LR: 15 DBA
Attenuation HR: 20 DBA
Inlet Clock Position: 3:00
Outlet Clock Position: 9:00
Style: Style 5
Accessories:
| 1 | ENMTP CPG - 5606629 (M120176) |
| 1 | FORD - 9575M120176 (M120176) |
| 1 | FREIGHTLINER - DNM120176 (M120176) |
| 1 | FURUKAWA - 38903111110 (M120176) |
| 1 | GROVE - 7642000056 (M120176) |
| 1 | GROVE - 764200056 (M120176) |
| 1 | GROVE - 80015984 (M120176) |
| 1 | A P PARTS - 3643 (M120176) |
| 1 | A P PARTS - 3643Q (M120176) |
| 1 | KRESS - 115841 (M120176) |
| 1 | LIEBHERR - 5606629 (M120176) |
| 1 | MANITOWOC - 7642000056 (M120176) |
| 1 | BADGER - 76034168 (M120176) |
| 1 | INTERNATIONAL - DCM120176 (M120176) |
| 1 | NELSON - 86121M (M120176) |
| 1 | SULLIVAN PALATEK - 050187850019 (M120176) |
| 1 | SULLIVAN PALATEK - 50187850019 (M120176) |
| 1 | STEMCO - 1909427 (M120176) |
| 1 | WHITE - 49032190 (M120176) |
| 1 | WALGAHN-MOTORENTECHN - 00810341 (M120176) |
| 1 | WALGAHN-MOTORENTECHN - 810341 (M120176) |
| 1 | NEW HOLLAND - P3141445 (M120176) |
| 1 | CUB CADET - 547379C1 (M120176) |
| 1 | CUB CADET - 549479C1 (M120176) |
| 1 | DYNAFLEX - 88500428 (M120176) |
